FRONT FOLD MODEL
24 ROW 70cm

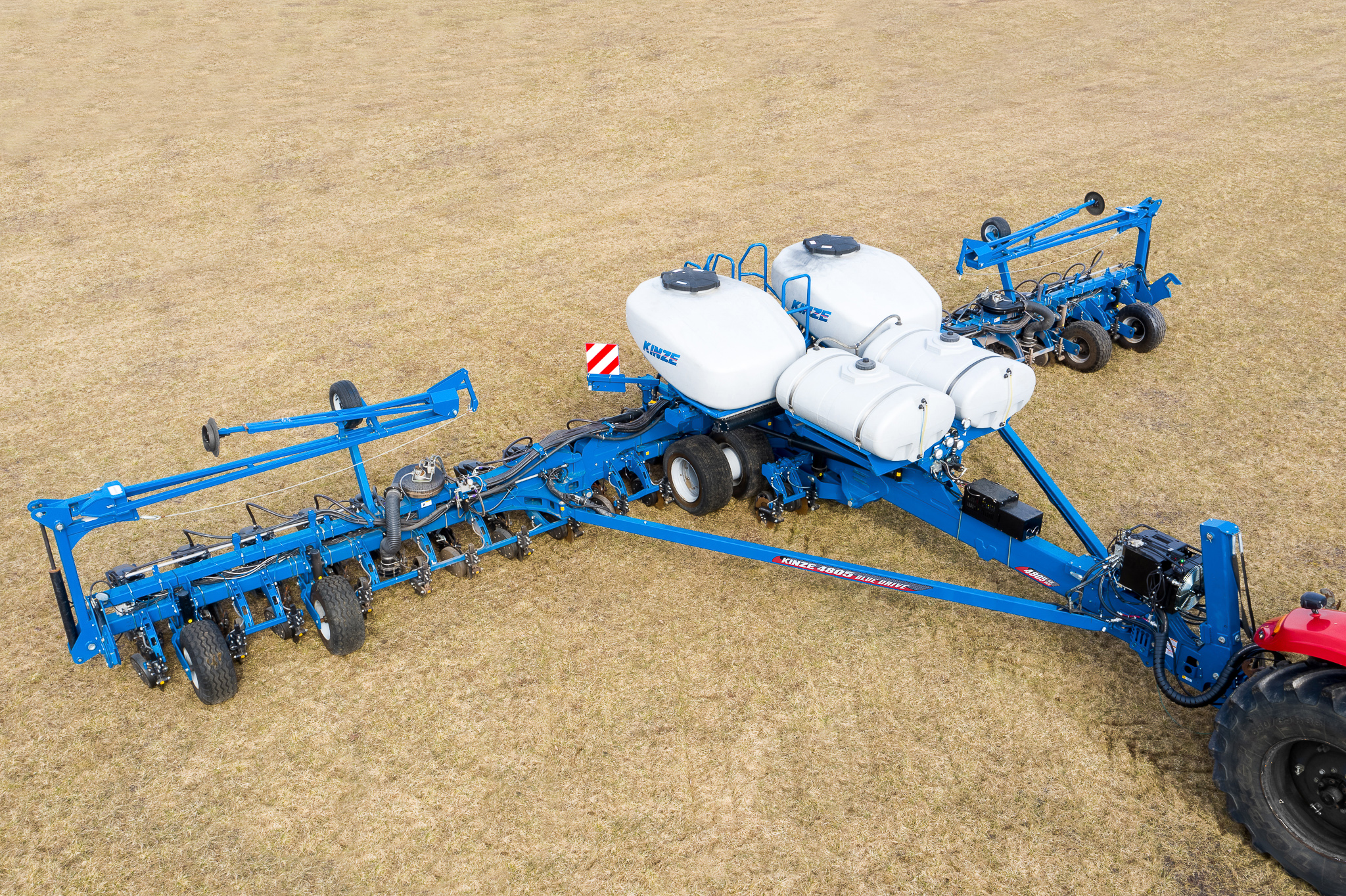

Equipped with Blue Vantage display, Blue Drive electric drive, rugged cast row units, True Speed high speed meters, and True Depth hydraulic down force, the 4805 delivers unrivaled seed control and placement at speeds up to 19 km/h. The front fold, 3 section, high clearance frame, equipped with larger front mounted tires and transfer, supports large seed and fertilizer capacities while reducing pinch row compaction.
TRUE. BLUE. Advantage.
24 ROW 70 CM
The proven front fold, 3 section, high clearance frame design of the classic 4805 has been trusted for its versatility and durability for years. Its ground contact drive with the True Rate vacuum meter is capable of speeds up to 13 km/h as field conditions allow.
24 ROW 70 CM
Equipped with Blue Vantage display, Blue Drive electric drive, rugged cast row units, True Speed high speed meters, and True Depth hydraulic down force, the 4805 delivers unrivaled seed control and placement at speeds up to 19 km/h. The front fold, 3 section, high clearance frame, equipped with larger front mounted tires and transfer, supports large seed and fertilizer capacities while reducing pinch row compaction.
Key Benefits
Classic
- Plant at speeds up to 13 km/h as field conditions allow, with the True Rate vacuum meter
- Improved durability, longer wear life, and lower cost of ownership from 05 Series row unit upgrades
- Follow rolling terrain with a 3-section pivot fold frame with 30 degrees of wing flex
- Hydraulic wing locks and best in class transport clearance for easy and safe road transport
- Reduced pinch row compaction with 4 230 L bulk fill seed capacity with a hydraulic weight transfer system
High Tech
- True high-performance and accurate split row planting with True Speed high speed or True Rate vacuum meters, Blue Drive electric drive, and upgraded 05 Series row units
- Simple and easy to use Blue Vantage display with Map Sync® shared coverage data and up to four planter-mounted cameras
- Consistent seed depth control from the optional True Depth hydraulic down force system
- Reduced pinch row compaction with 4 230 L bulk fill seed capacity with a hydraulic weight transfer system
- Few stops and improved efficiency with up to 3 800 L of liquid fertilizer controlled by Blue Vantage or up to 6 130 L of dry fertilizer capacity
- Lower tractor hydraulic requirements and only two SCVs required with PTO variable displacement pump
- Follow rolling terrain with a 3-section pivot fold frame with 30 degrees of wing flex
- Hydraulic wing locks and best in class transport clearance for easy and safe road transport
Features and Options
Classic
05 Series row unit enhancements
Ground contract drive
True Rate vacuum meter
Speeds up to 13 km/h
High Tech
Blue Vantage display
Blue Drive electric drive
True Speed high speed or Ture Rate vacuum meters
True Depth hydraulic down force
Active hydraulic weight transfer
Bulk fill seed hopper
Liquid or dry fertilizer
4 230 L bulk fill seed capacity
Lower tractor hydraulic requirements
3-section pivot fold frame with 30 degrees of wing flex
High transport clearance
Blue Vantage Playlist
SIMPLE DISPLAY INTERFACE
Planting should be easy, especially when all you want to do is plant. The ability to just plant is key when you have a narrow window of opportunity to get your crops in. The Blue Vantage display offers a simple, easy-to-use user interface that communicates directly with your Kinze planter. Simply confirm the settings…and away you go!
Electric Drive System
Row-by-row control that gives you the ability to plant accurately where you need to. Precise placement equates to higher yields and maximized profitability. The Blue Drive electric drive system is designed to seamlessly integrate with the Blue Vantage display to analyze and report critical planting data and place your seed exactly where it needs to go.
TRUE planting performance from the ground up
Spend less time in the shop and more time in the field with the 05 series planter enhancements. Double the acres between service intervals with upgrades to row unit wear points for improved durability and ease of maintenance. With an enhanced seed delivery system, plant more crop types, seed sizes, and increase your speed.
Accurately Achieve Results at True Higher Speeds.
Double the acres you plant in a day! True Speed is a high speed electric drive meter that controls seed from meter to seed trench. The result is precise singulation and see spacing with various seed shapes and sizes at your speed (up to 19 km/h). True Speed is an easy-to-maintain system saves you time and money, resulting in lower cost of ownership.
